Mechanical vibration tests and environmental tests

Laboratory for vibration test, shock, combined and  more generally environmental testing



The ultimate objective of testing is to INCREASE SAFETY and REDUCE COSTS.

During the productive process, environmental vibration tests and climatic tests are an indispensable step for every company or R&D center that needs to check:

  • The validity of a prototype in development phase.
  • The reliability and safety of products placed on the market.
  • The reliability and safety of prototypes destined to scientific applications.
  • The level of protection that the packaging offers the product (ISTA and ASTM tests). We point out that our wide range of machines allows us to be one of the few testing houses performing fully in-house ISTA tests: a required condition for their correct execution. Indeed the ISTA top management specified that moving the test sample outside the laboratory invalidates the essential condition of repeatability of the test itself, since it is inserted in an uncontrollable environment.

Environmental vibration testing consists in the predefined and repeatable simulation of the types of stresses experienced by a sample in its environment of use.

Vibration tests make it possible to define the dynamic behavior of a given sample and identify any critical issues.

To give more value and reliability to the results provided by the test, the sample must be placed in a condition as close as possible to the real working condition. This is why we give you the possibility of supplying the electrical, pneumatic or hydraulic (oil or glycol) circuit of the sample and of monitoring its condition during the test.

In many cases, this testing is mandatory and regulated by standards.

Our laboratory vaunts internationally-recognized certification.

Mechanical vibration tests and environmental tests

The vibration tests we perform

  • Vibration on three axes test
  • Shock test
  • Combined: vibrational + climatic test
  • Climatic (temperature, humidity or combined) test
  • Altitude test
  • Free fall test
  • Compression test
  • Impact test
  • Static acceleration test
  • HALT test

Main sectors in which we operate

The laboratory fulfills testing requests from all industrial sectors. Nonetheless some main reference categories can be identified whose standards we have gained a significant expertise on.

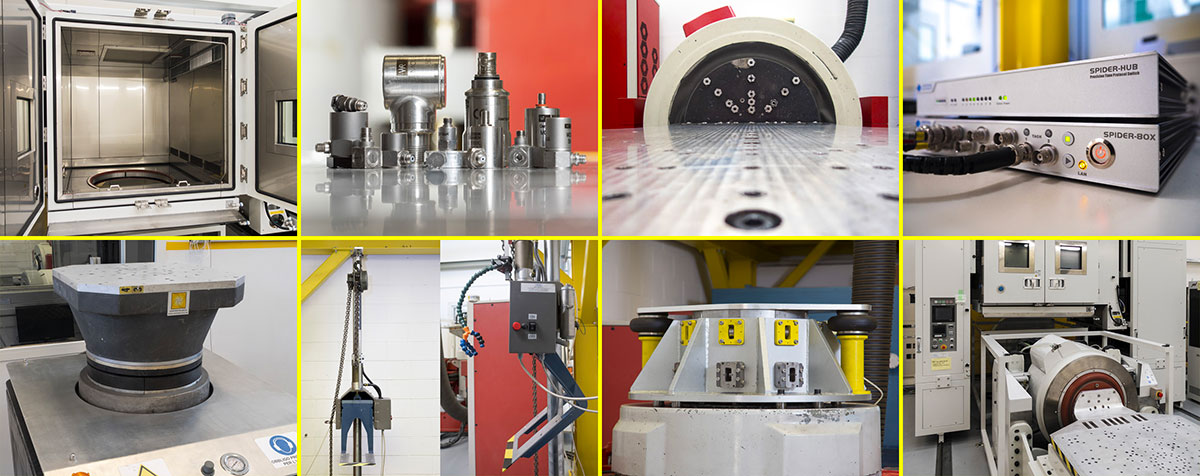

Machines for vibration tests

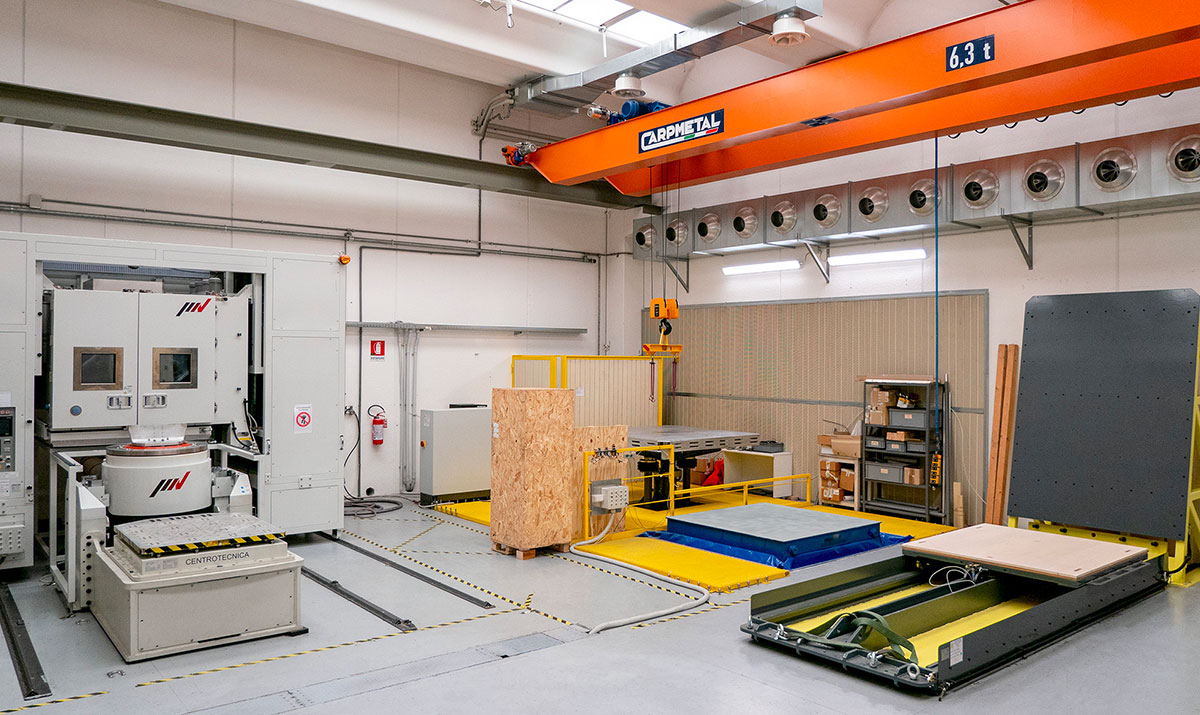

One of seven test areas in Centrotecnica.

Technical support and consultancy

Our offer covers all dynamic tests and includes technical consultancy services:

  • prior to the test for the identification of the best procedure to follow and the optimum sample preparation technique.
  • during and after the execution of the test for the interpretation of the sample’s response to the stress applied.


1 - How is a vibration test organized?
The first step is to establish which type(s) of test to be performed. Whenever there are product specifications, the customer must communicate them to Centrotecnica before proceeding to the next steps; if research tests must be carried out on the product, we work hand in hand with our commercial technicians to identify a suitable test campaign; if we know the sector of use without having specifications in hand, we support the customer in identifying an appropriate standard. If live or operating checks or drives are required, the details must be defined with our team.
The second step is for the Centrotecnica team to produce a test program to be submitted to the client’s approval.
At this point, the test(s) can be planned and the sample(s)can be sent to the laboratory.

2 - Must the sample be supplied in advance?
It is also always advisable to deliver the sample in advance in order to have time to verify the condition of the sample and its real dimensions and to make sure that the set up has been performed correctly.
Moreover, nearly all the regulations about distribution tests, require a period of acclimatization at the test laboratory that ranges from 12 to 48 hours. Upon an express request that must be reported, such acclimatization period can be avoided (for reasons of urgency, for example).

3 - How many equivalent samples must be tested?
For prototype study phases usually only 1  is sufficient. Consulting the test specifications is always advised, however. For example from 3 to 5 parcels are highly advised for transport tests, depending on the standard being applied.

4 - Who decides whether or not the test has been passed?
The criteria to establish whether or not the samplepasses the test are established by the client, who is the only party with in-depth knowledge of the product, the reason for testing, the part of the product to test, and its end use. Then there are cases where the criteria are defined in detail in the test specification or by the certifying bodies.
Whenever conditions arise for which the test must be interrupted, it is highly recommended that they becommunicated to the laboratory.
Centrotecnica can provide support in identifying such criteria and guiding the client in pinpointing any critical aspects.

5 - Can tests be attended?
Yes. Intention to attend a test must be communicated in advance in order to permit the management of spaces from a health (social distancing, room ventilation) and to ensure the confidentiality to all tests that may be in progress simultaneously.

6 - Can tests be performed also on samples containing hazardous material?
Cases such as these must be analyzed case by case with the sharing of the material’s technical data sheet and all safety information. Whenever possible, and whenever permitted by test specifications, substituting such hazardous material  with other material of equal mass is advised.

7 - What information does a test report provide?
A test report is a document that containsthe description of the sample, the reference standards, the test program, the description of the test procedure with the programming parameters, the description of the machines used, the control equipment, and the measuring instruments with the respective calibration references.
The conditions of the samples being tested are described and photographically documented both during and at the end of testing. The responses of the samples being tested and the test cycles are documented by charts and tables (1).
Test reports can be provided in Italian or English (2).

Note 1: the test report shows the final conditions of the samples and their instrumental response but does not provide the outcome of the test, which, as per point 4, is in the hands of the customer or the certifying agencies.

Note 2: whenever the tests are performed to the standards required for ISTA certification, the report is provided on a format imposed by the certification agency (in English only).

Contact us for any request of further information
