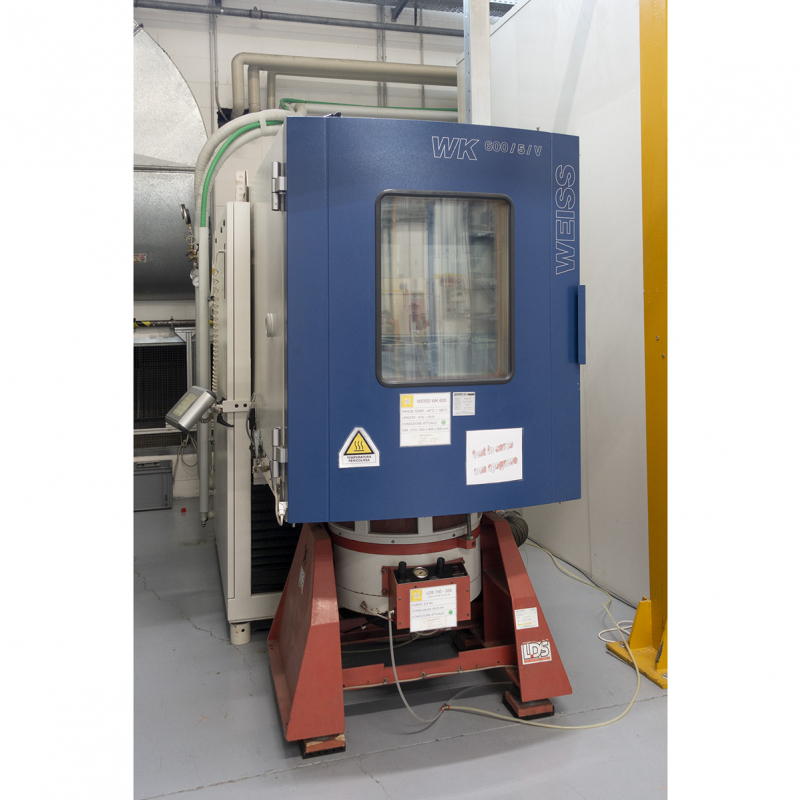

Shaker LDS V730 with climatic chamber
System adaptable to a wide range of products.
Medium power electrodynamic shaker equipped with climatic chamber.
The shaker + camera system can perform combined tests in compliance with the main standards (DIN, ISO, MIL, IEC and ASTM) and with specific automotive specifications.
Features and performance
- Sine force (peak): 9,8 kN
- Maximum acceleration: 75 g pk sine / 60 g sms random
- Maximum stroke: 50,8 mm (pk-pk)
- Frequency range: 5 - 3000 Hz
- Armature size: 335 mm expandable with expander
- Maximum static load: 160 kg
- Controller channels: up to 24
- Types of test: Sine, Random, Shock, Sine on Random, Dwell
- Temperature range: -40°C / +180°C
- Temperature with climate: +5°C / +95°C
- Thermal gradient: 5°C/ min
- Internal dimensions (LxWxH): 940x800x800 mm
- Humidity control: 10% / 95%
